Hydraulic Pressure Corrugated Roof Roll Forming Machine Steel Tile Type

Name: Hydraulic Pressure Corrugated Roof Roll Forming Machine Steel Tile Type
Brand: wadley
Price: 1 USD

Quality Hydraulic Pressure Corrugated Roof Roll Forming Machine Steel Tile Type wholesale

Brand Name : wadley

Model Number : LM_SX76

Certification : ISO 9001

Place of Origin : china

MOQ : 1 set

Payment Terms : L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 50 sets / month

Delivery Time : 15 working days

Packaging Details : wooden case

Name : Pressure tile machine

Production Capacity : 8-15M/Min

Power(W) : 7.5 Kw

Tile Type : Steel

Use : Roof

thickness : 0.3-0.7mm

Contact Now

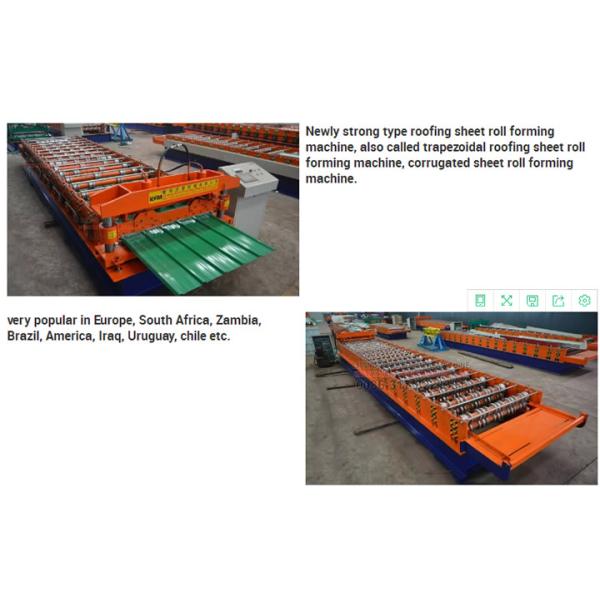

Hydraulic Pressure Corrugated Roof Tile Manufacturing Roll Making Forming Machine

The tile pressing machine is a machine consisting of discharging, forming and post-forming cutting. Its color plate has a flat appearance, uniform paint, high strength and durability. It is widely used in industrial and civil buildings, such as factories, warehouses, stadiums, Exhibition halls, theaters and other rooms and walls.

Hydraulic Pressure Corrugated Roof Roll Forming Machine Steel Tile Type

Technical Parameters:

No.	Item	Specification
1	Can Formed Material	PPGI,GI,AI
2	Equipment operation	Automatic
3	Voltage	380V 60Hz 3Phase or as your requirement
4	Thickness of sheet (mm)	0.3-0.8mm
5	Material width(mm)	As your requirement
6	Cover Width of the sheet after formed	as your drawing
7	The size of the roll forming machine	6000mmx1600mmx1400mm
8	Speed	12-15m/min
9	Diameter of shaft	75mm
10	Weight of the Machine	5500-6500KGS
11	Material of rollers	C45 steel quenched and chromed
12	Motor brand	Siemens or Guomao
13	PLC	Siemens or Delta or Mitsubushi
14	Total power (kw)	9.5kw
15	Power of hydraulic system	4kw
16	Power of main molding core	5.5kw

Hydraulic Pressure Corrugated Roof Roll Forming Machine Steel Tile Type
